Description
SIZE OF LEG
62.0cm
AGE
8-11years
WEIGHT
11.15kgs
Min stand-over height 62cm or 24 1/2" •
Max seat height 88cm or 34 3/5" •
Min seat height 72cm or 28 3/10"
Recommended that child can stand with both feet on the ground over lowest top tube point in front of saddle.
In stock, ready to ship
Accessories for this bike
Specs and Geometry
Specification
| STANDOVER HEIGHT | 62CM |

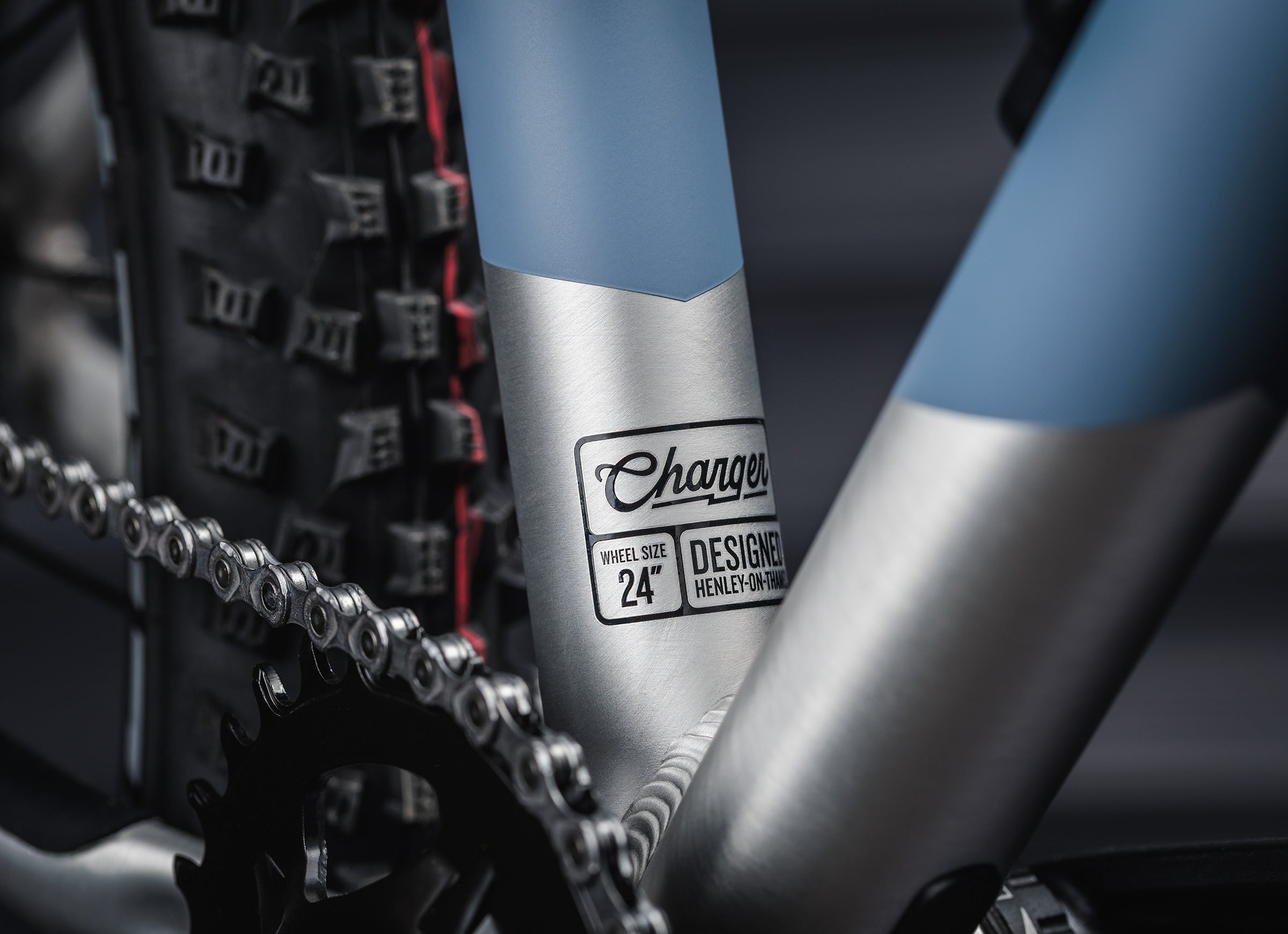

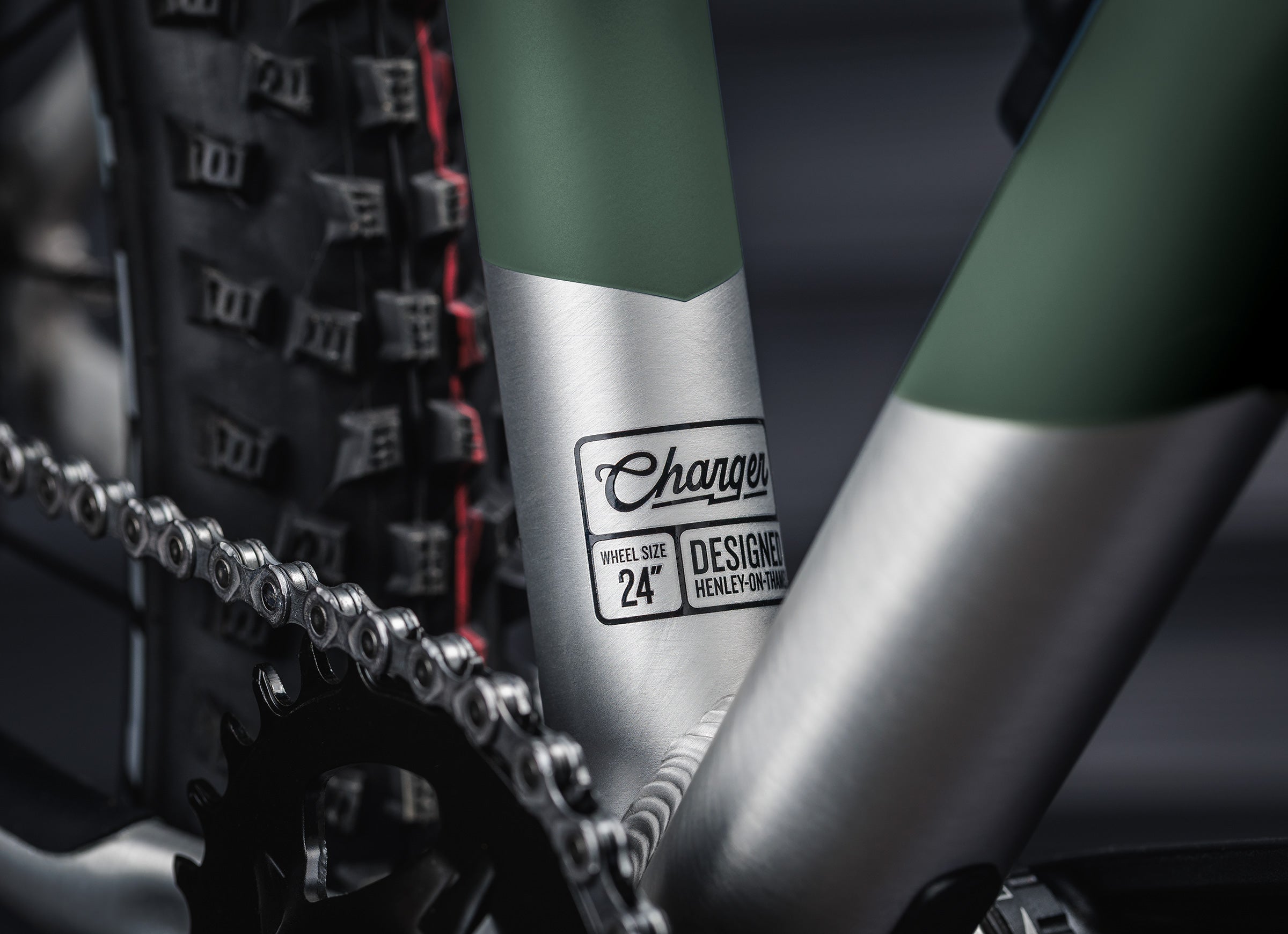

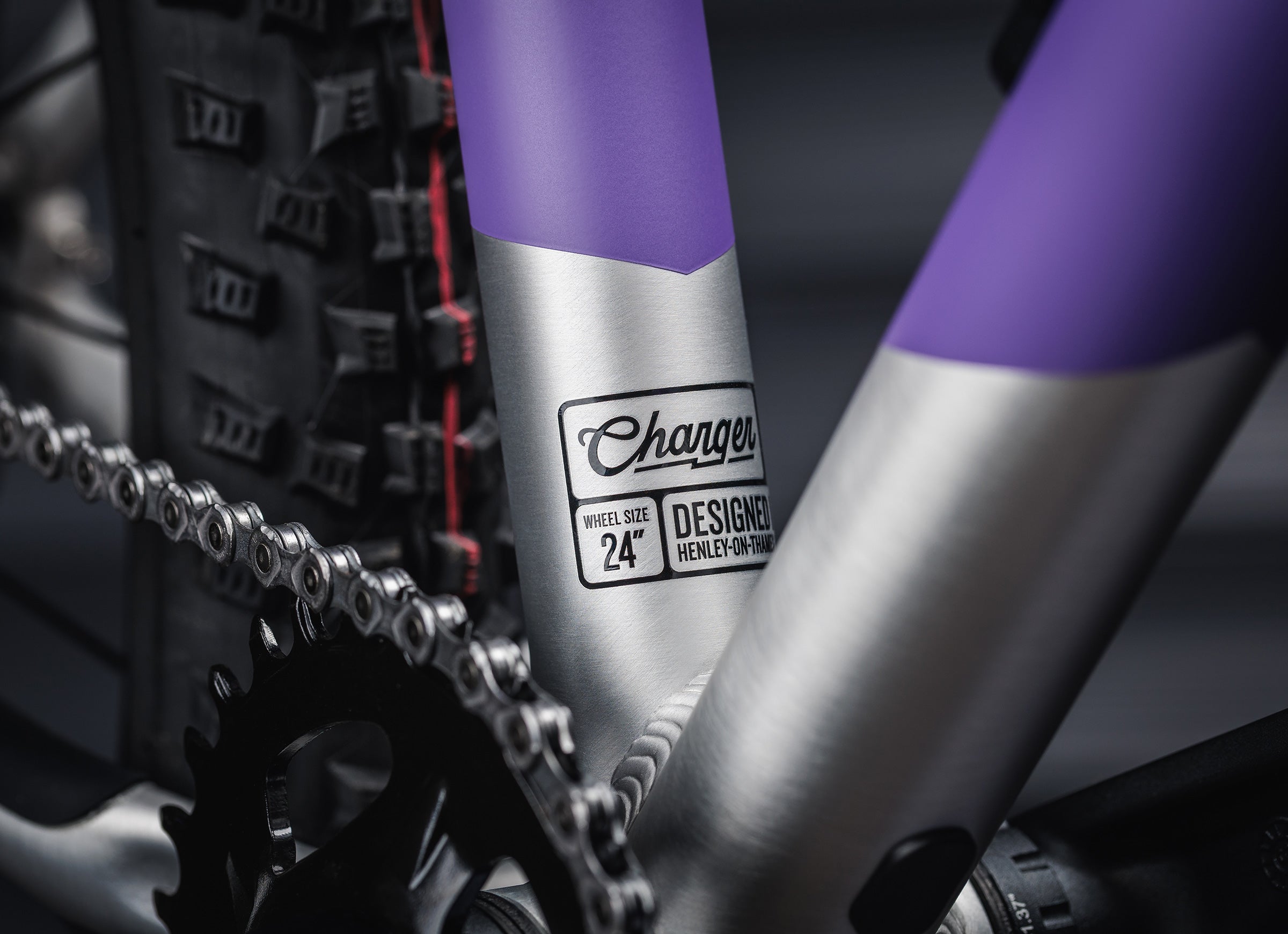

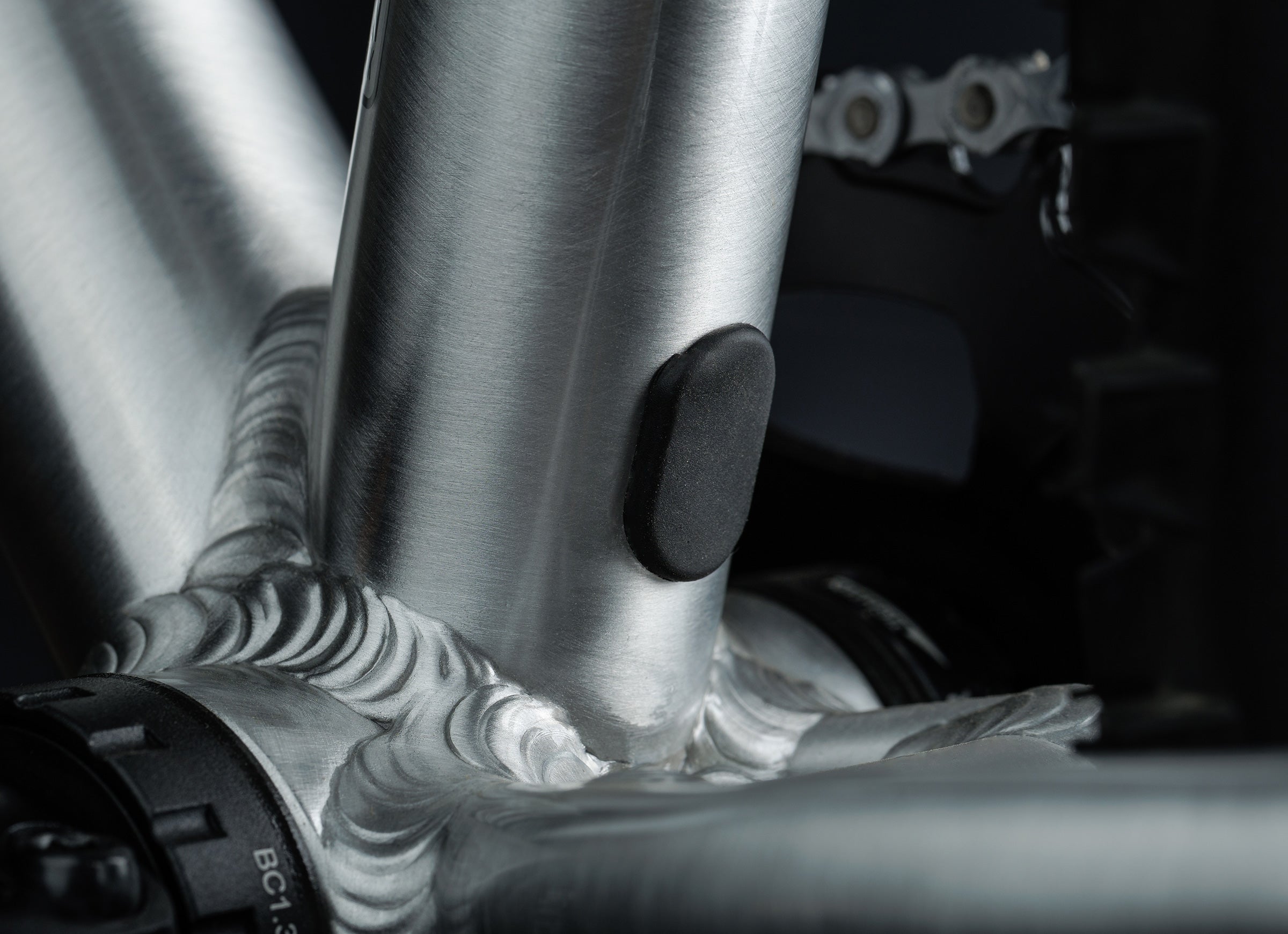

| FRAME | HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS |

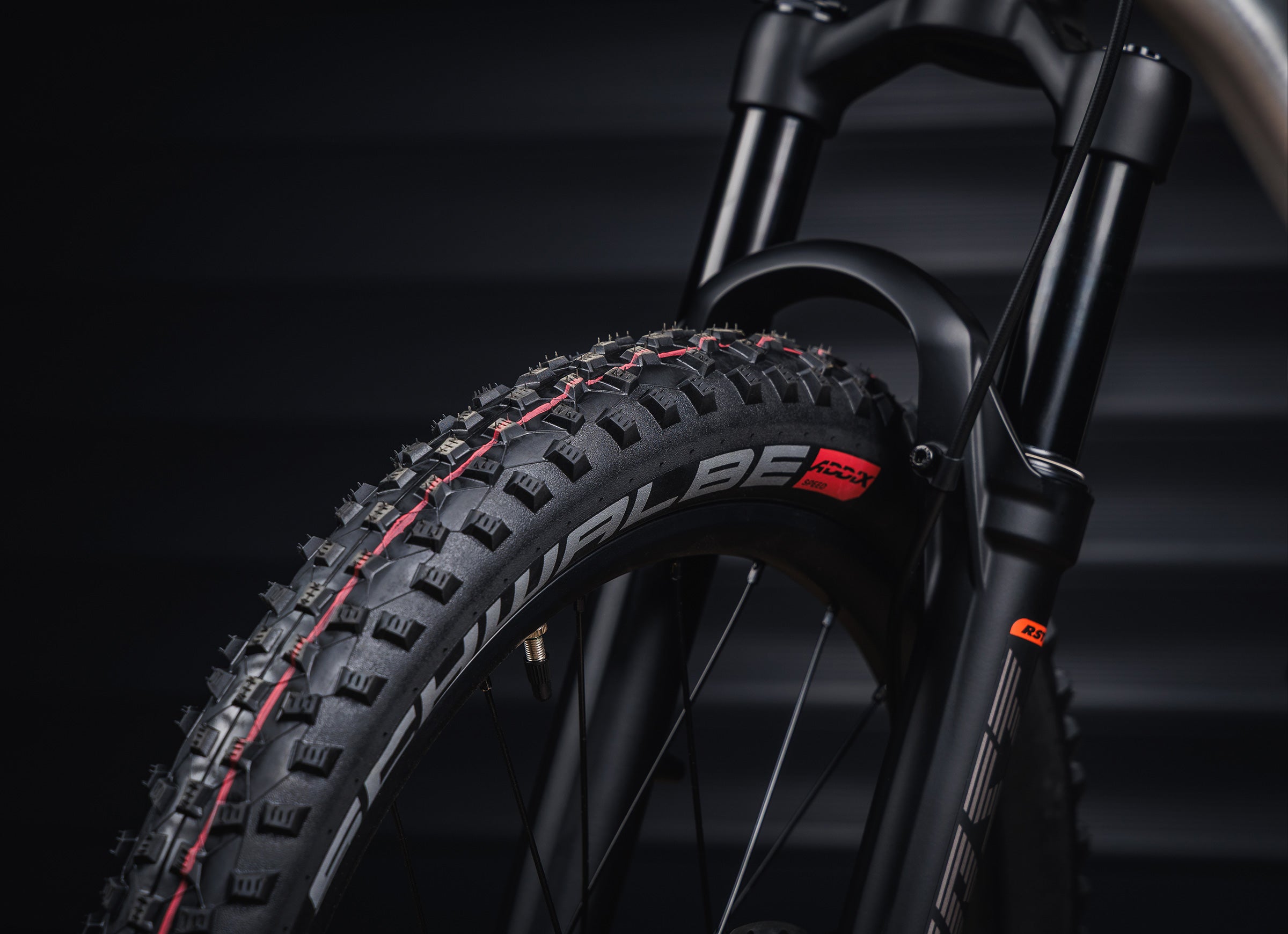

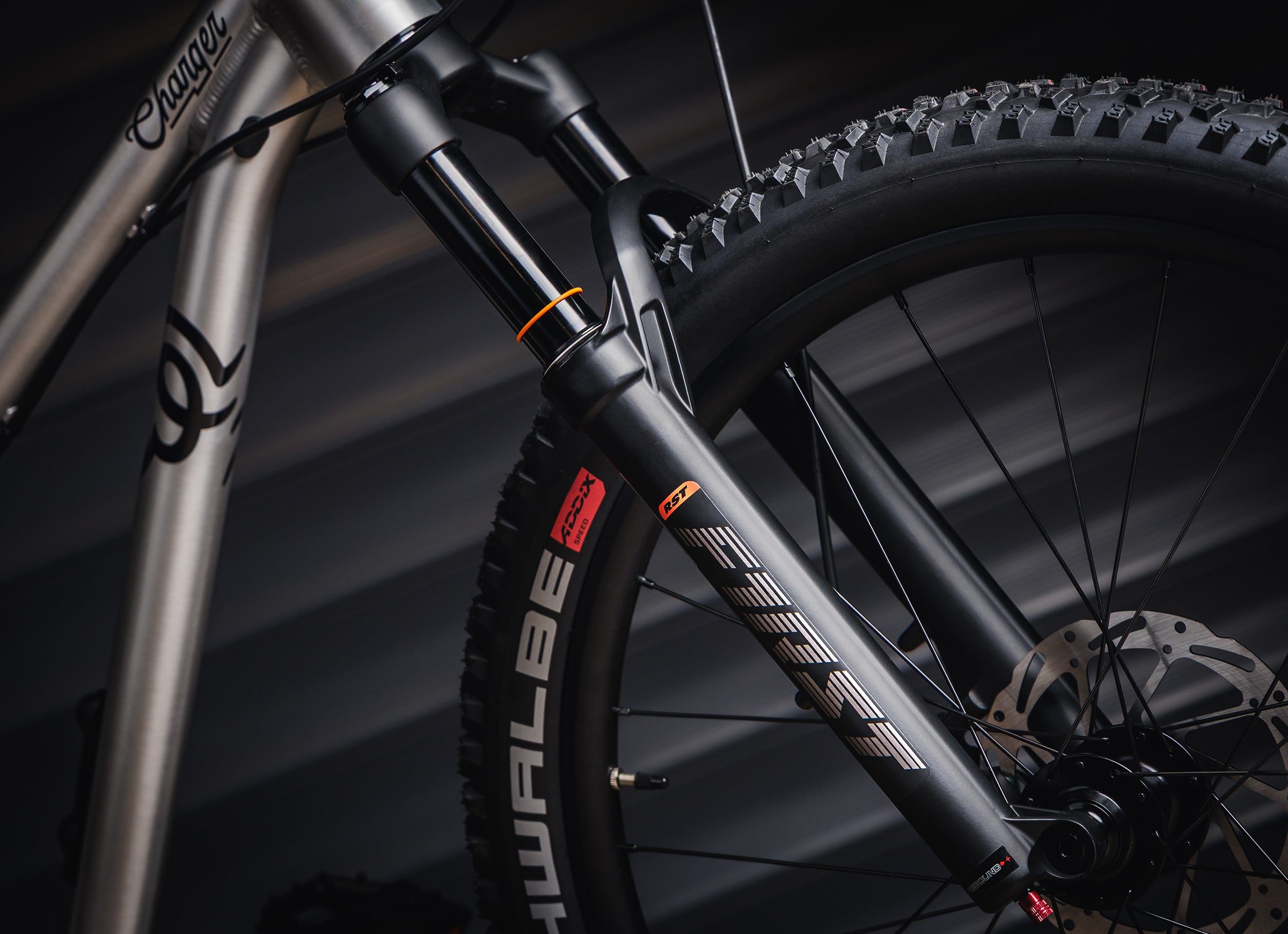

| FORK | RST F1RST 100MM TRAVEL AIR SUSPENSION FORK |
| STEERER | TUBE AL6061 |

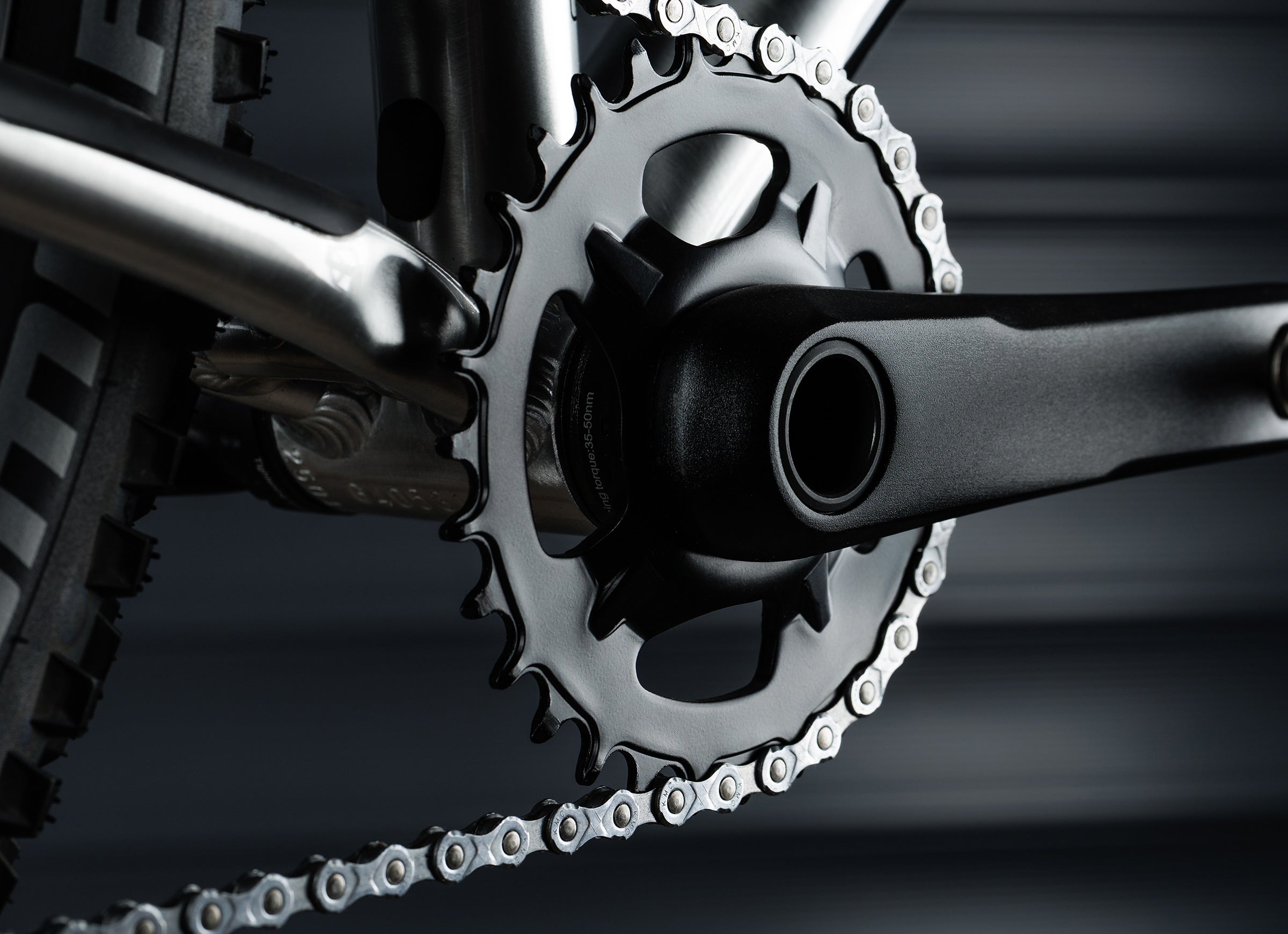

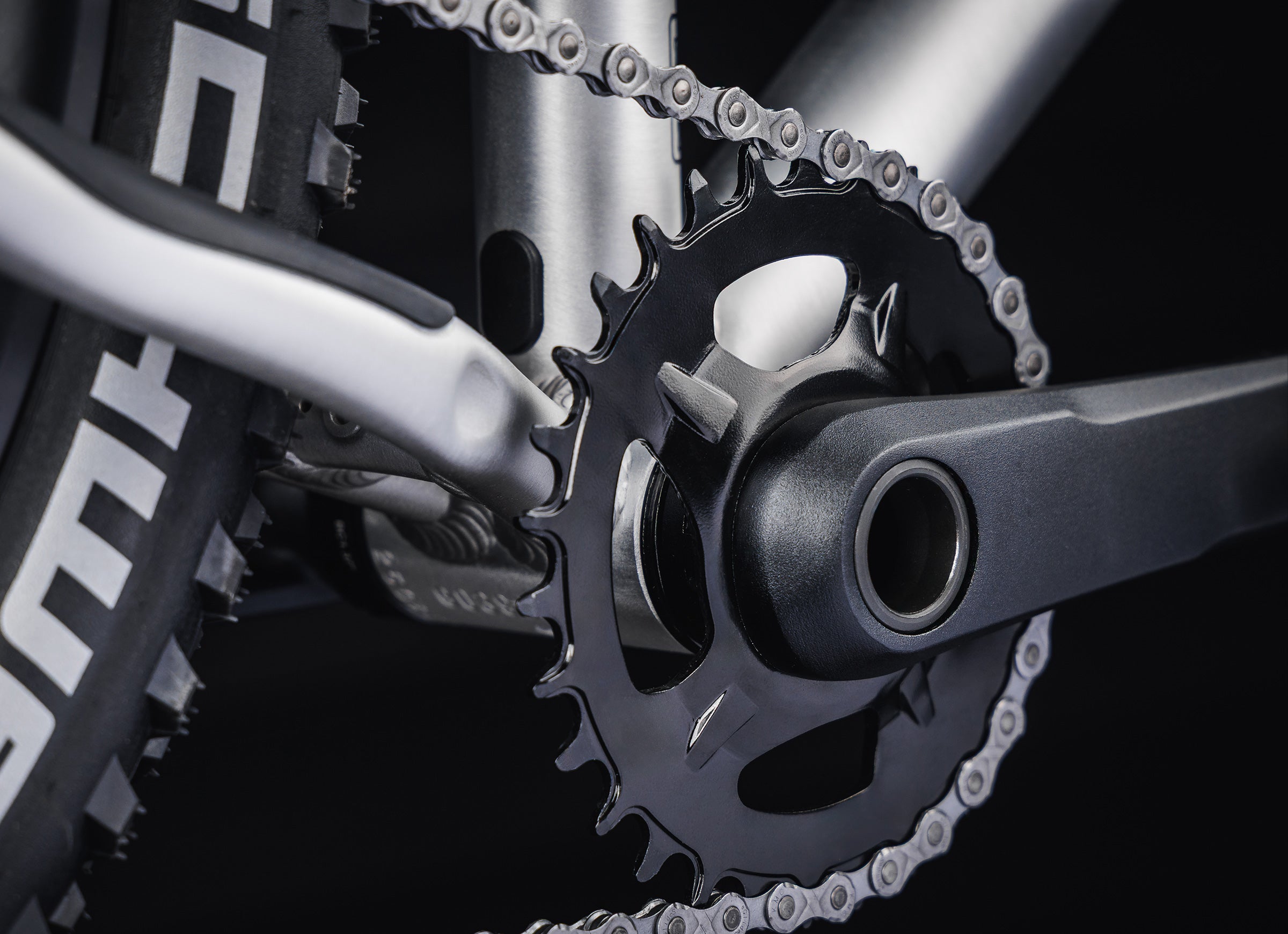

| CRANKS | SAMOX 127MM DIRECT MOUNT, NARROW Q FACTOR |
| PEDALS | ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING |
| BOTTOM BRACKET | SAMOX 24MM EXTERNAL CUP |
| RIMS | 24 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE |
| REAR HUB | FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061 |
| FRONT HUB | CNC’D 6 BOLT DISC, AL6061, QR SKEWER |
| AXLES | REAR: 12MM BOLT THRU, FRONT: 15MM BOLT THRU |
| CHAIN | KMC eGLIDE EPT |
| CHAINRING | DIRECT MOUNT, NARROW WIDE 30T |
| WEIGHT | 11.15KGS W/O PEDALS |
| REAR CASSETTE | SHIMANO 10-SPEED 11-43T LINKGLIDE |

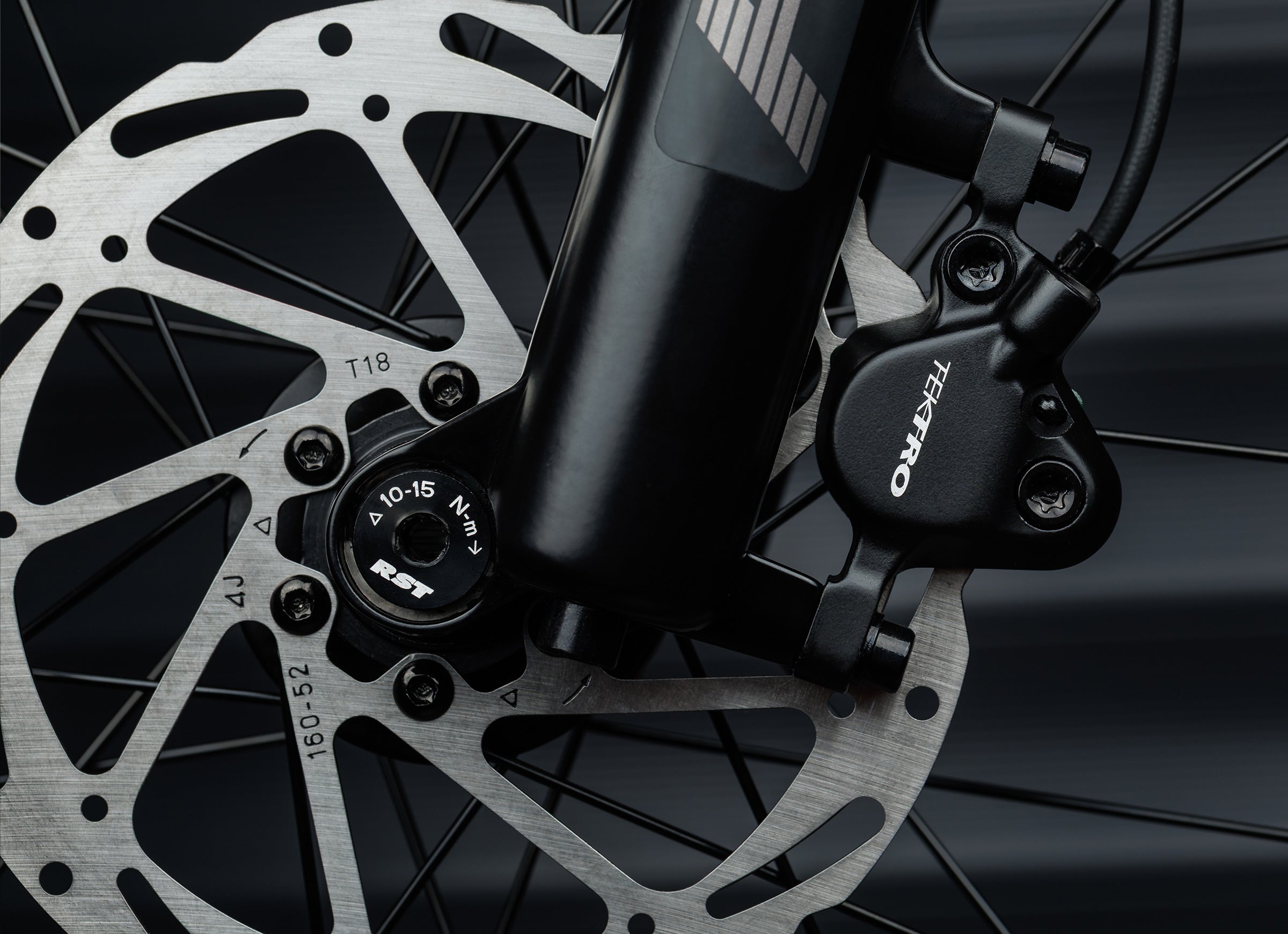

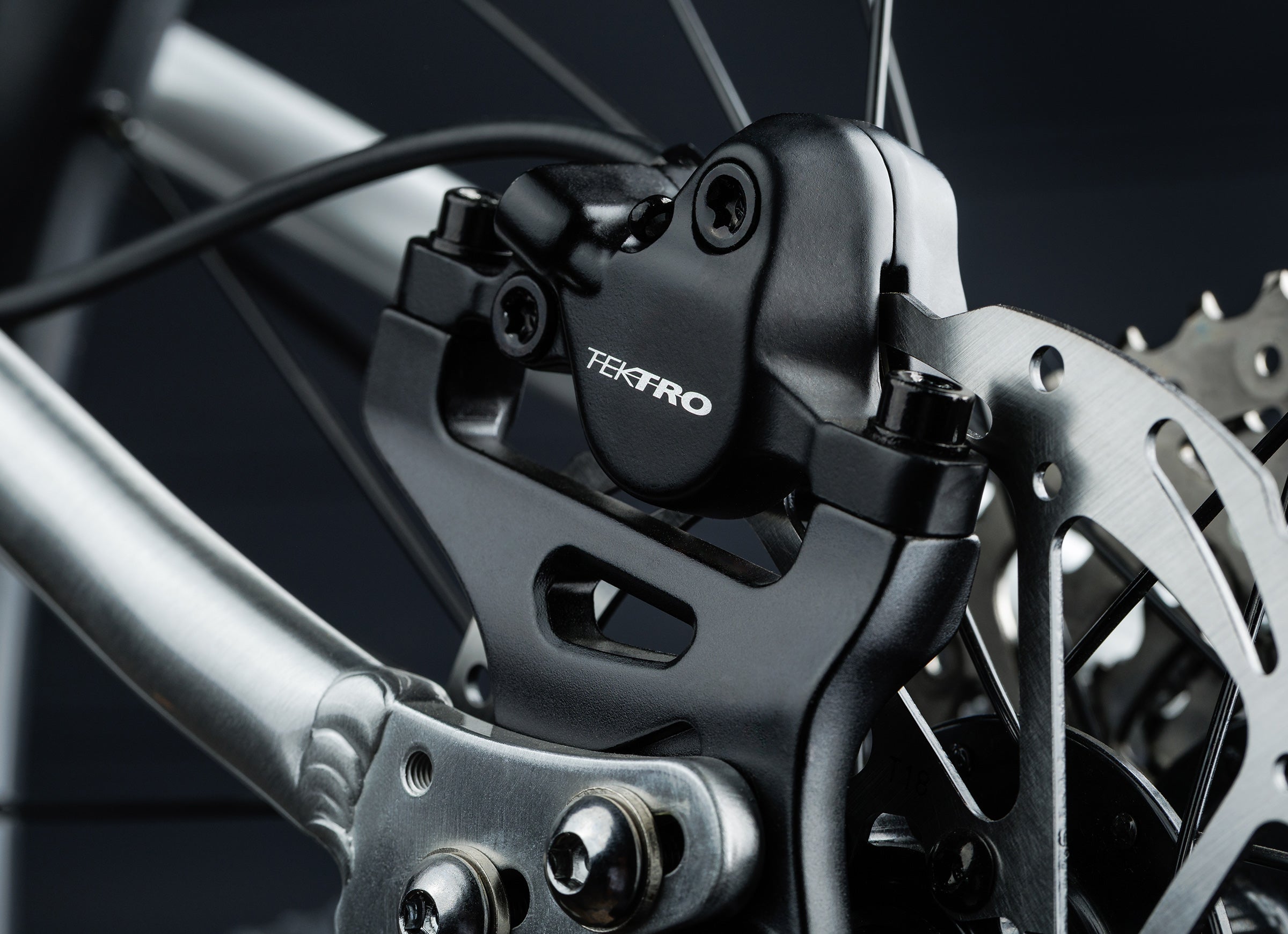

| BRAKES | TEKTRO HYDRAULIC DISC, 160 ROTORS |
| LEVERS | TEKTRO SHORT REACH |

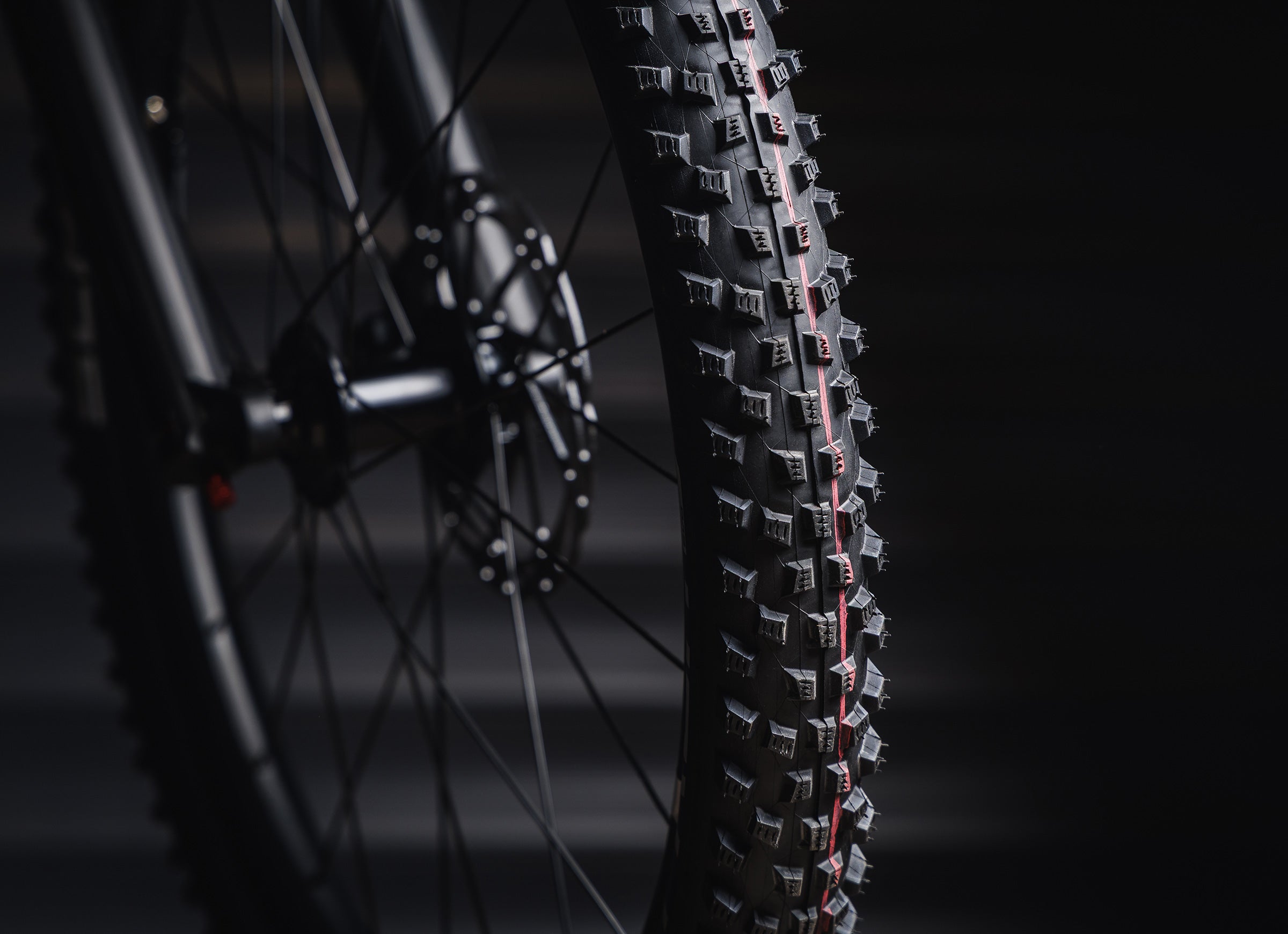

| FRONT TYRE | SCHWALBE ROCKET RON 24x2.25", 67TPI FOLDING |
| REAR TYRE | SCHWALBE ROCKET RON 24x2.25", 67TPI FOLDING |
| HEADSET | 1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
| STEM | FORGED AL6061, 35MM REACH |

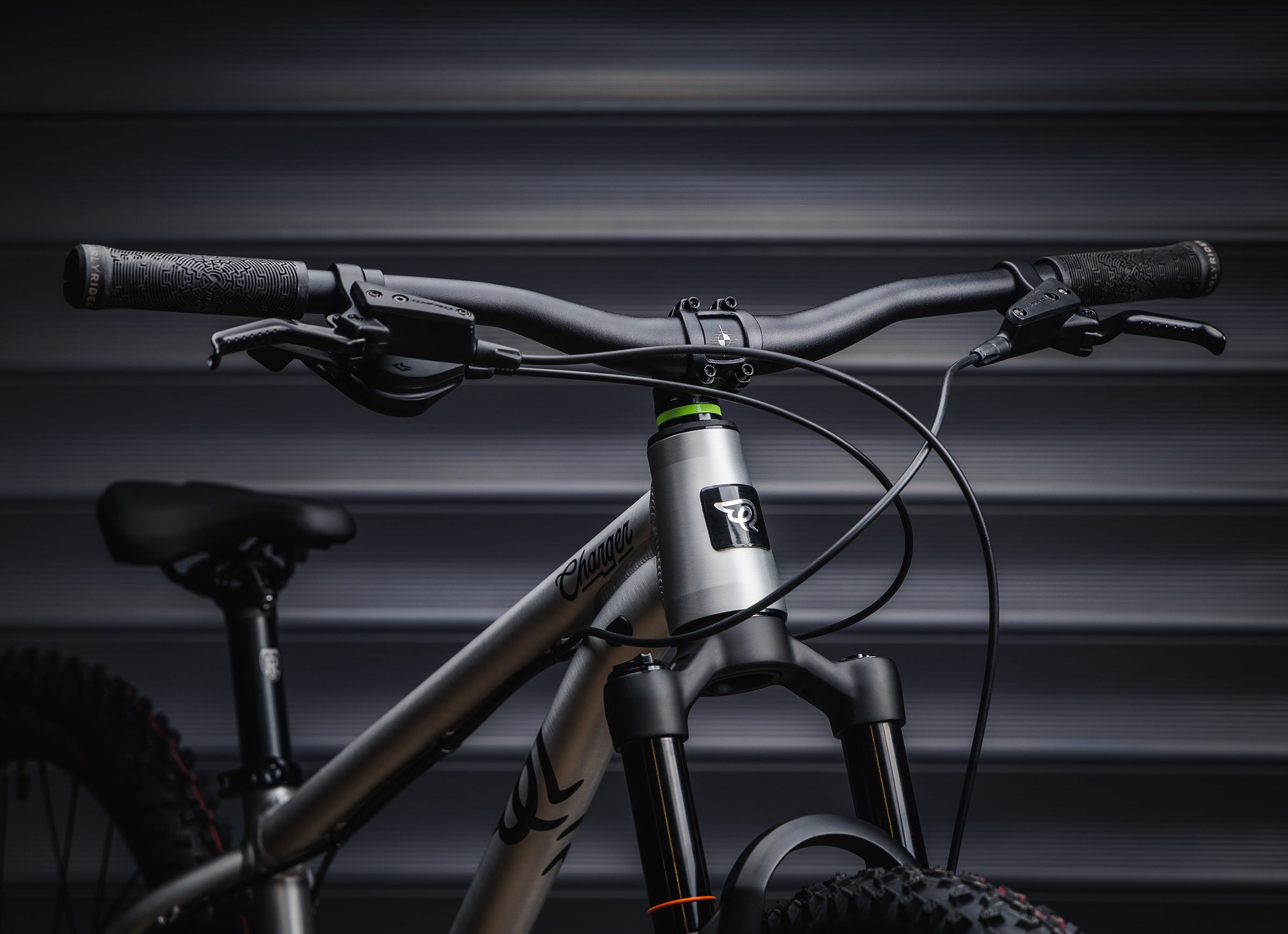

| BARS | 660MM DOUBLE BUTTED AL6061, 25MM RISE |
| GRIPS | ER LOCK ON KRATON 92MM |
| SEAT POST | 30.9mm x 350mm |
| SADDLE | ER WING 2, RAILED |
| SEAT CLAMP | ER QR 34.9mm |

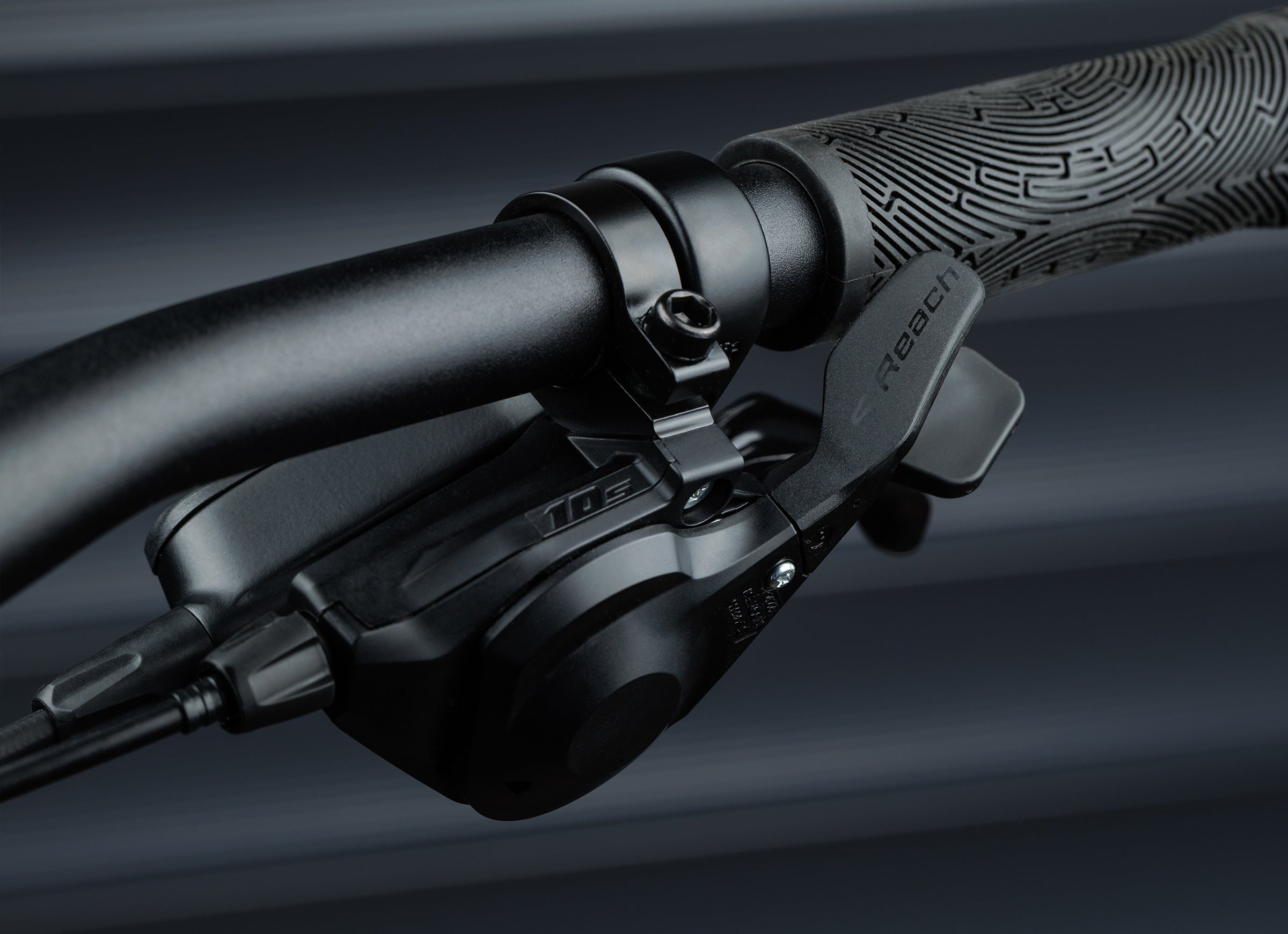

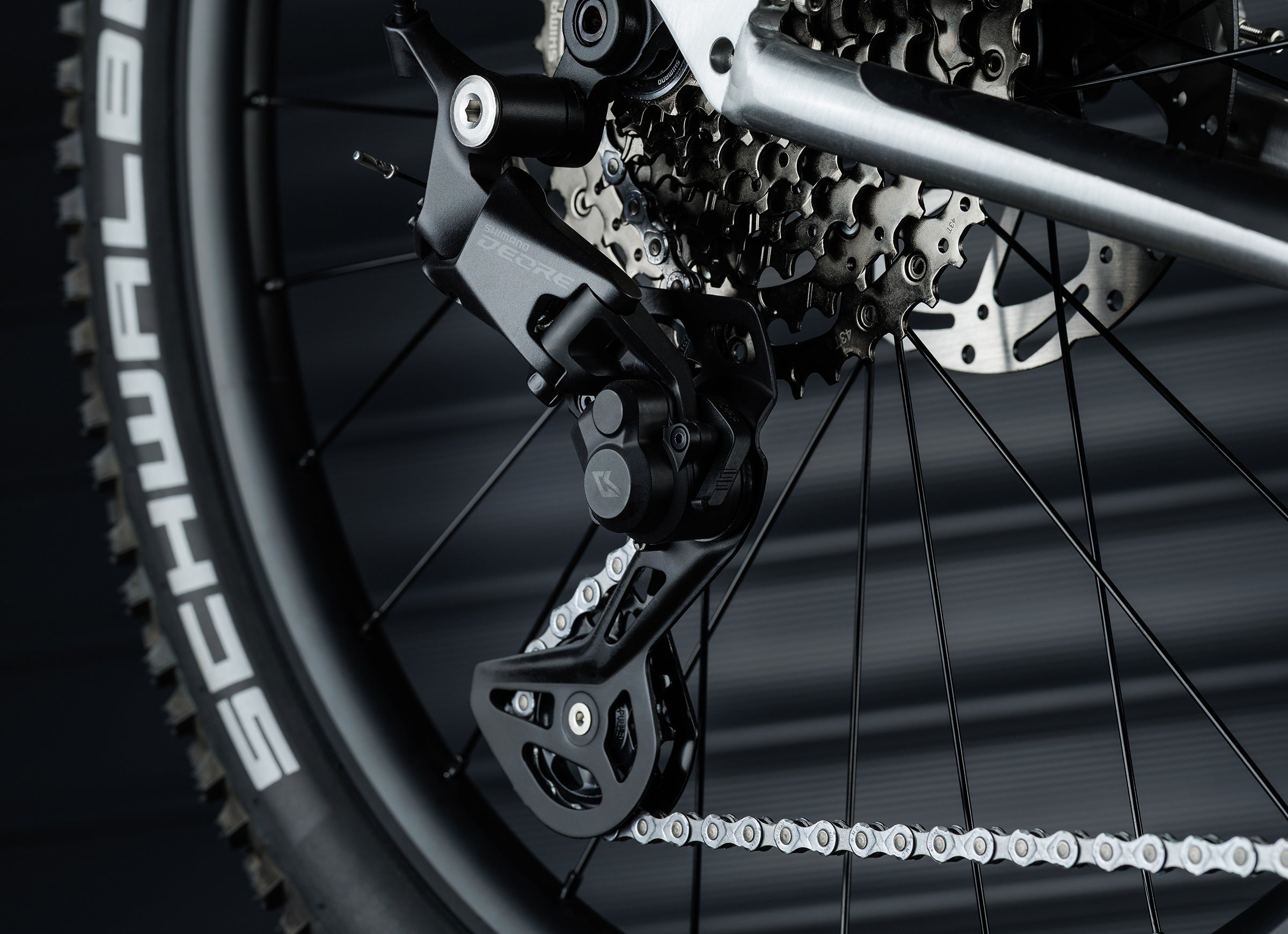

| DERAILLEUR | SHIMANO DEORE 10-SPEED MECH |
| ACCESSORIES | FIDLOCK READY BOTTLE CAGE |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
Geometry
| A | Wheelbase | 992.7mm |
| B | Head Angle | 67° |
| C | Seat Tube Length | 320mm |
| D | Chainstay Length | 390mm |
| E | Seat Tube Angle | 73° |
| F | Standover Height | 620mm |
| G | Top Tube Length | 513.8mm |
| H | Head Tube Length | 100mm |
| I | Stack | 539.3mm |
| J | Reach | 348.9mm |
| K | Fork Length | 459mm |

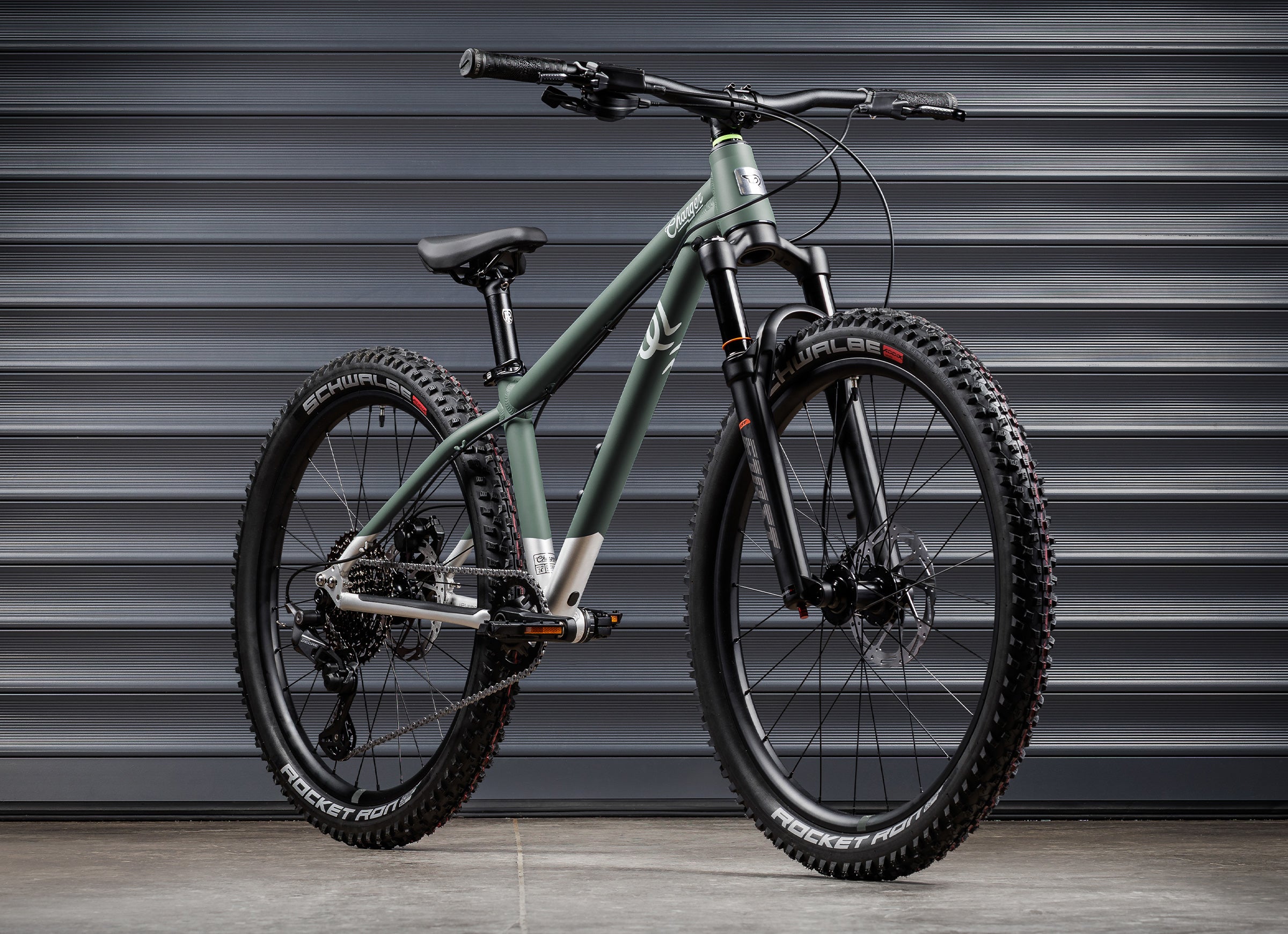

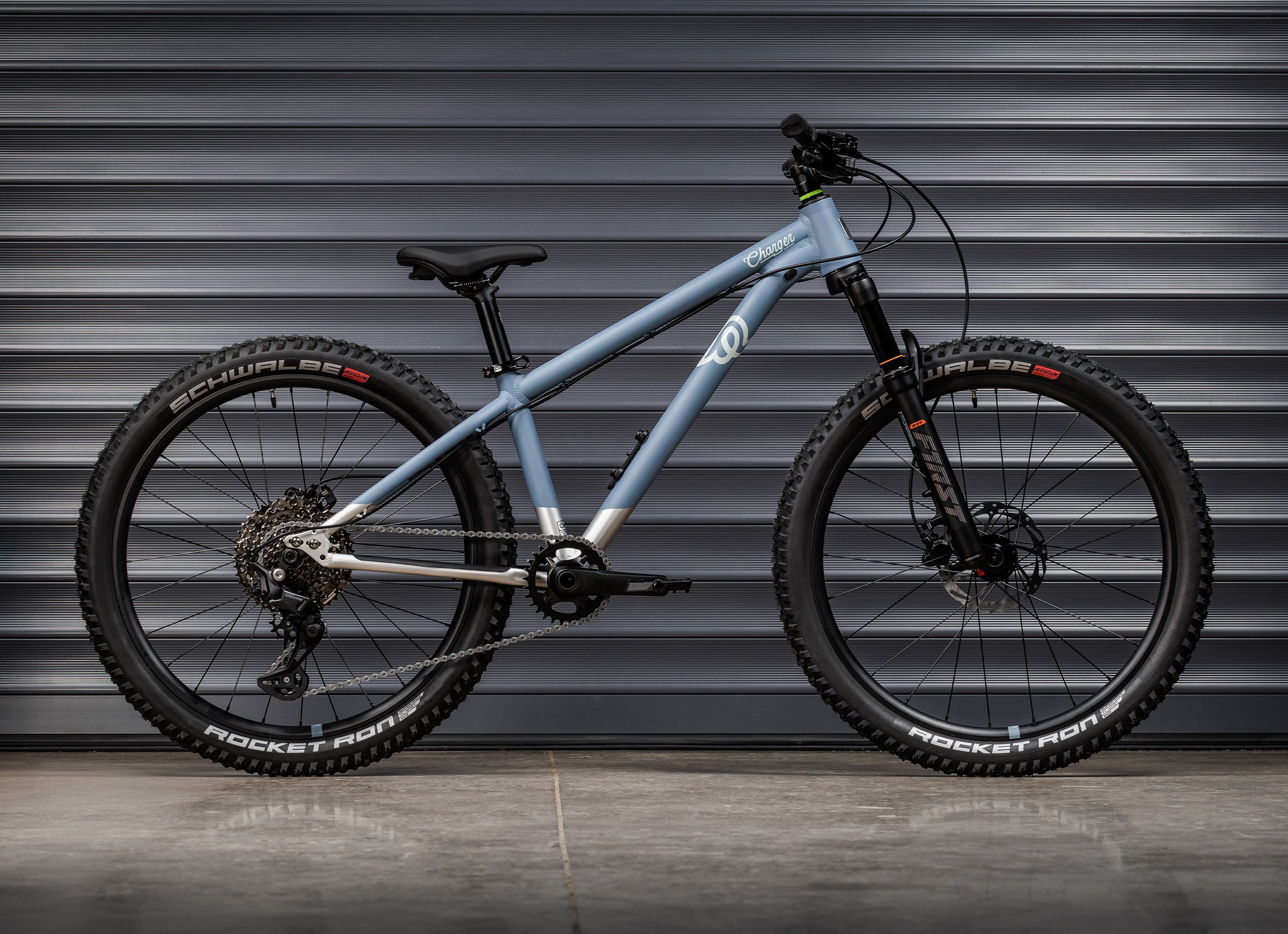

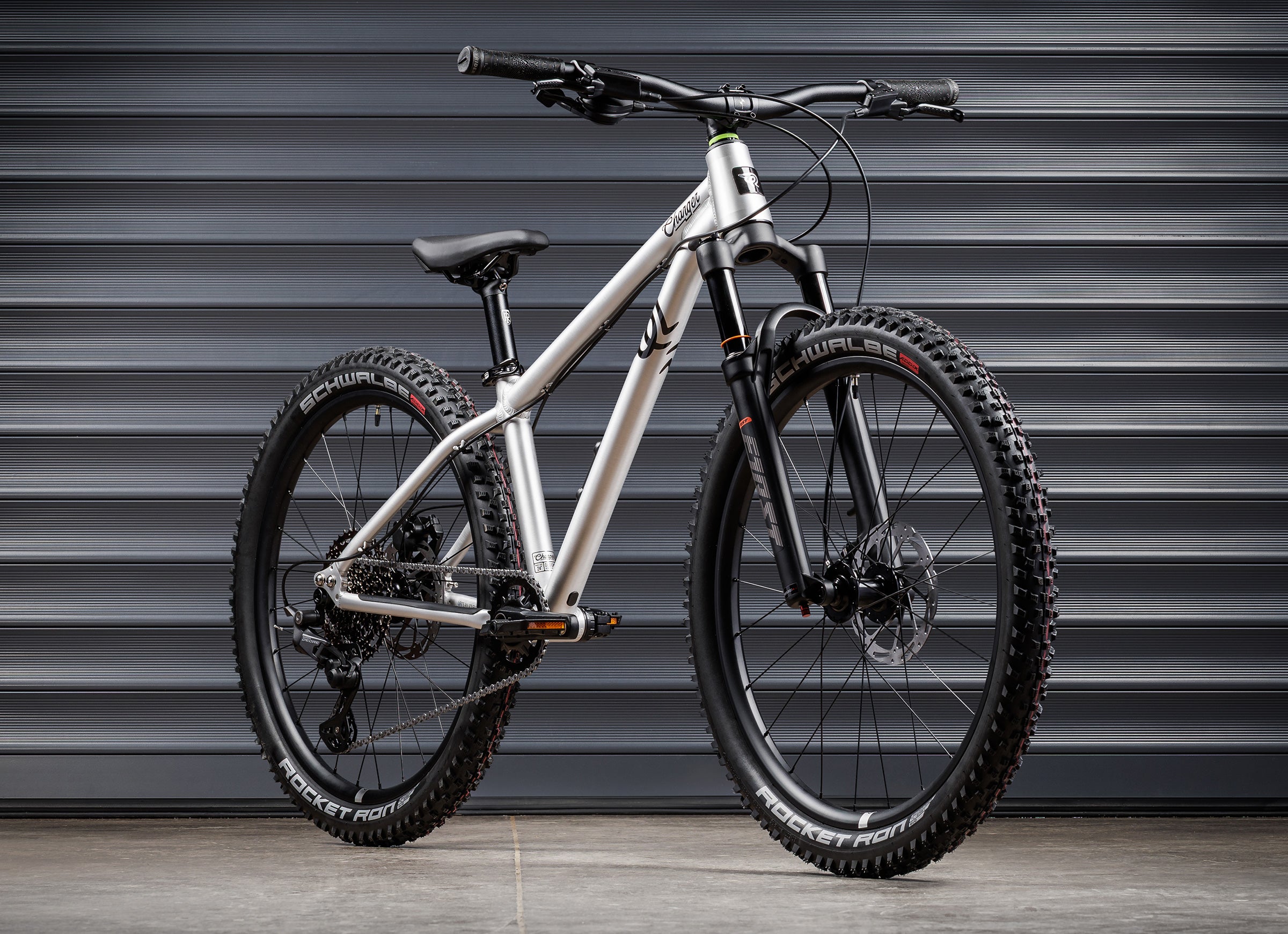

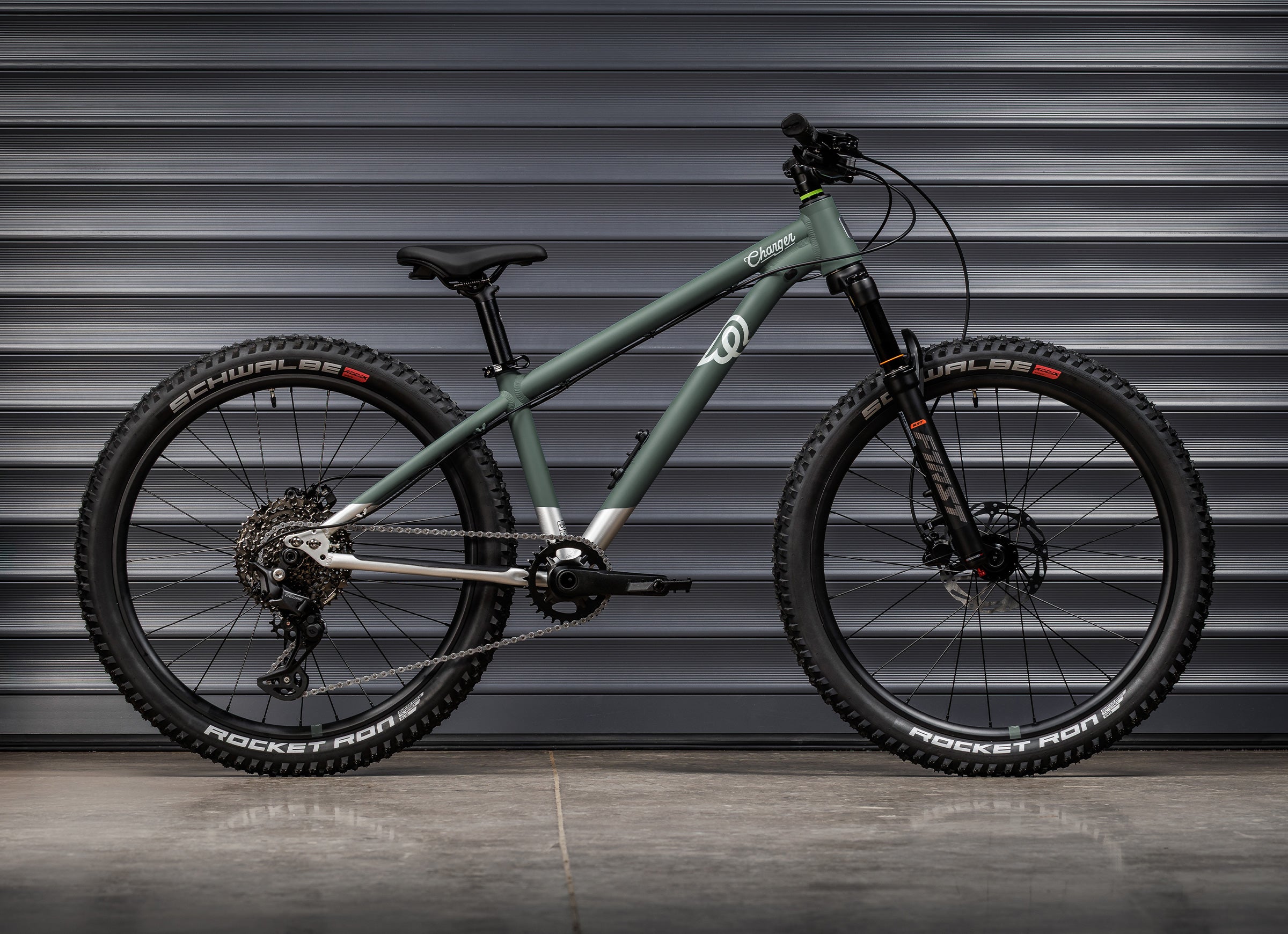

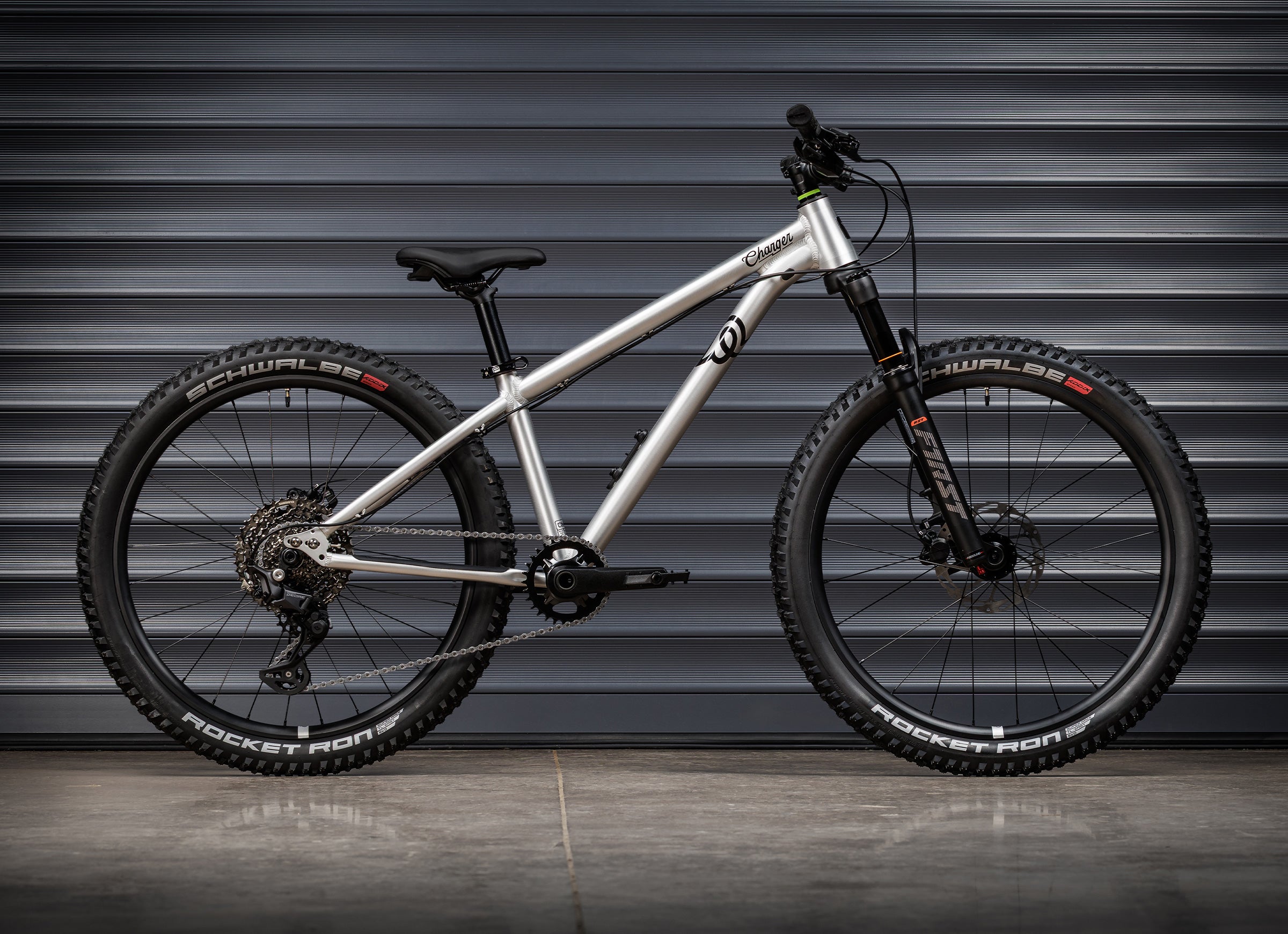

Meet the new Charger 24
