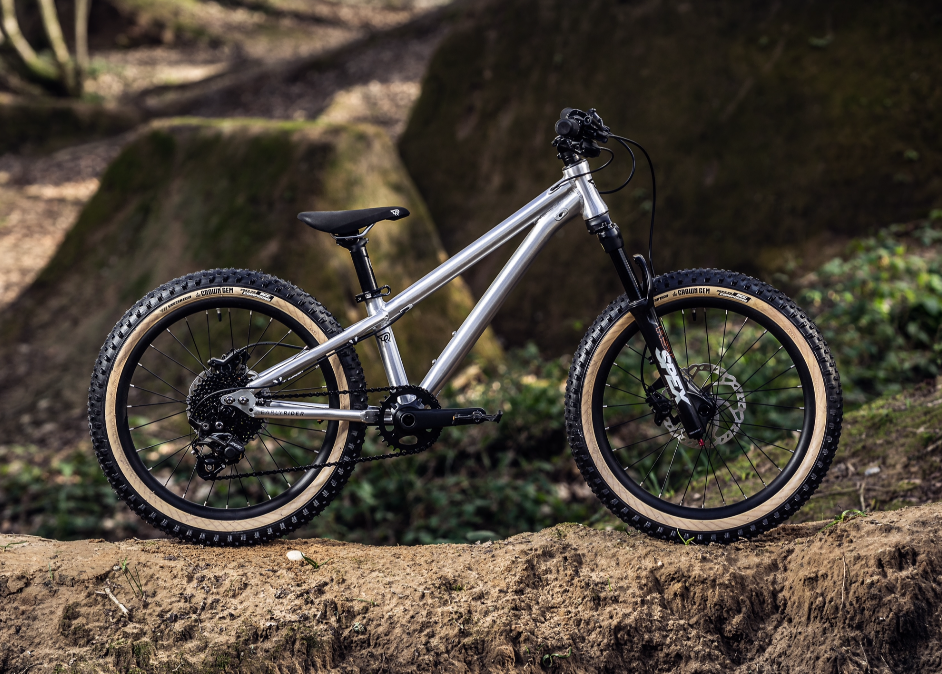

Hellion 20



Regular price £999.99 clear all

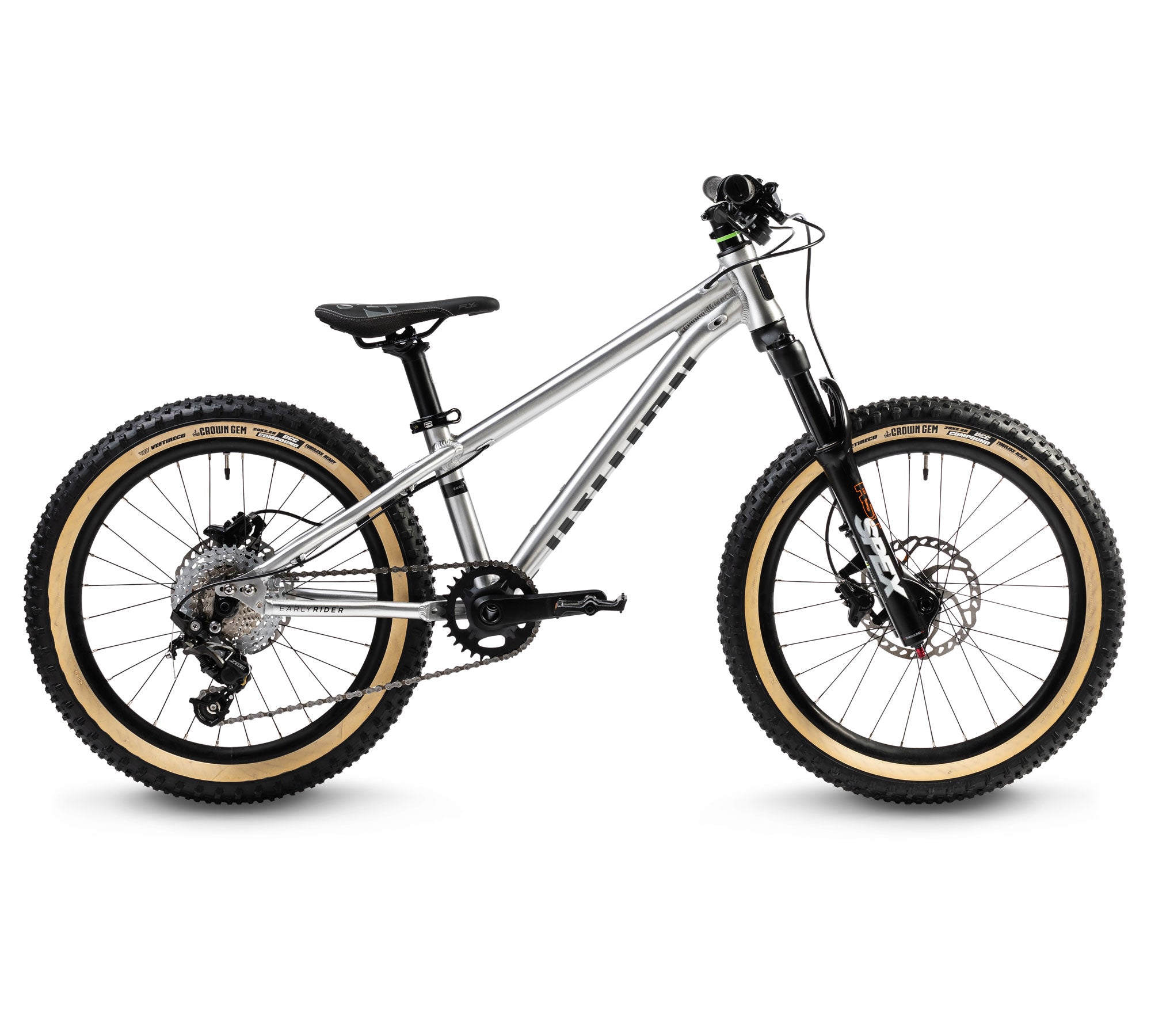

Hellion 20

Hellion 20
Hellion 20

Cut to the chase.

Forget everything you think you know about what a 20" can do. Every aspect of this Hellion is designed in the pursuit of performance. From there, anything is possible.

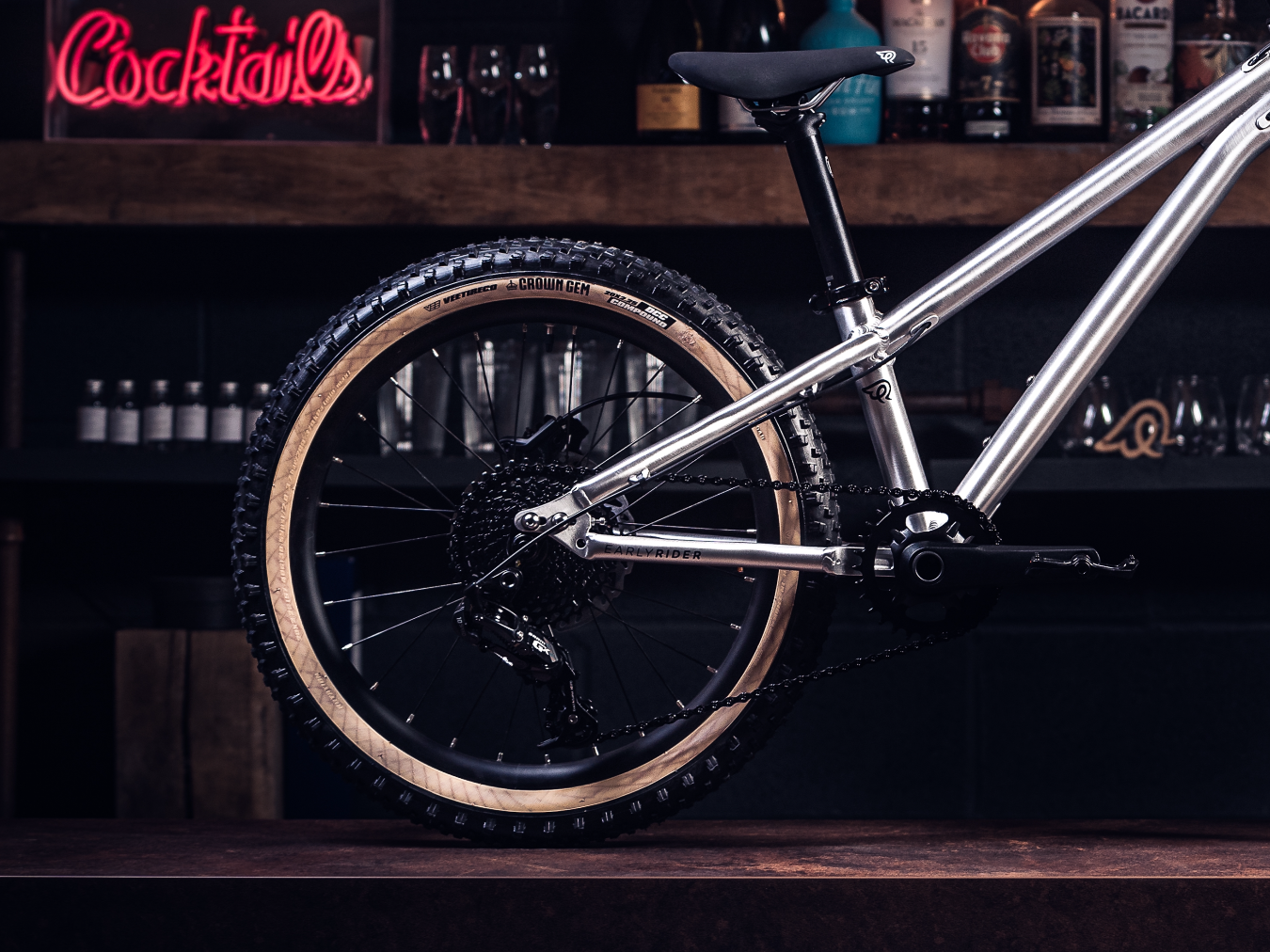

At its core, is a chassis intent on handling the hardest and the biggest, by being robust but lightweight, stable but nimble. It's long, low and slack but short stayed. It has triple butted tubes and a CNC'd chainstay yoke. It's internally routed and dropper ready. It has lightweight long travel forks, air sprung naturally, and through axles front and rear.

And it rolls on the best wheel set you could hope to find on a kids bike, driven by the best drive train, controlled by the best finishing kit and held in check by the very best brakes.

It reads like a Christmas wish list: straight pull CNC'd hubs, tubeless ready double walled rims, folding tyres (upto 2.6"), four bearing cassette, low Q factor direct mount cranks, narrow wide  chainring, 11-36T cassette, external cup bottom bracket, custom 35mm stem, butted riser 560mm riser bar, lock-on grips and the sweetest hydraulic brakes to bring everything nicely to a conclusion.

Trail

5/5

Adventure

4.5/5

Urban

4/5

0
1
2
3
4
5
6
7
8
9
10
11
70
80
90
100
110
120
130
140
150
160cm
2 - 3.5
2 - 4
2 - 4
2 - 4
2 - 4
2.5 - 5
3.5 - 6
5.5 - 8
8 - 11
2.5 - 5
3.5 - 6
5.5 - 8
8 - 11
3.5 - 6
5.5 - 8
8 - 11
87.5 - 97.5
90 - 100
92.5 - 102.5
87.5 - 102.5
87.5 - 102.5
92.5 - 110
102.5 - 120
117.5 - 135
130 - 150
92.5 - 110
102.5 - 120
117.5 - 135
130 - 150
100 - 120
117.5 - 135
130 - 150

INSIDE LEG

54CM

FRAME

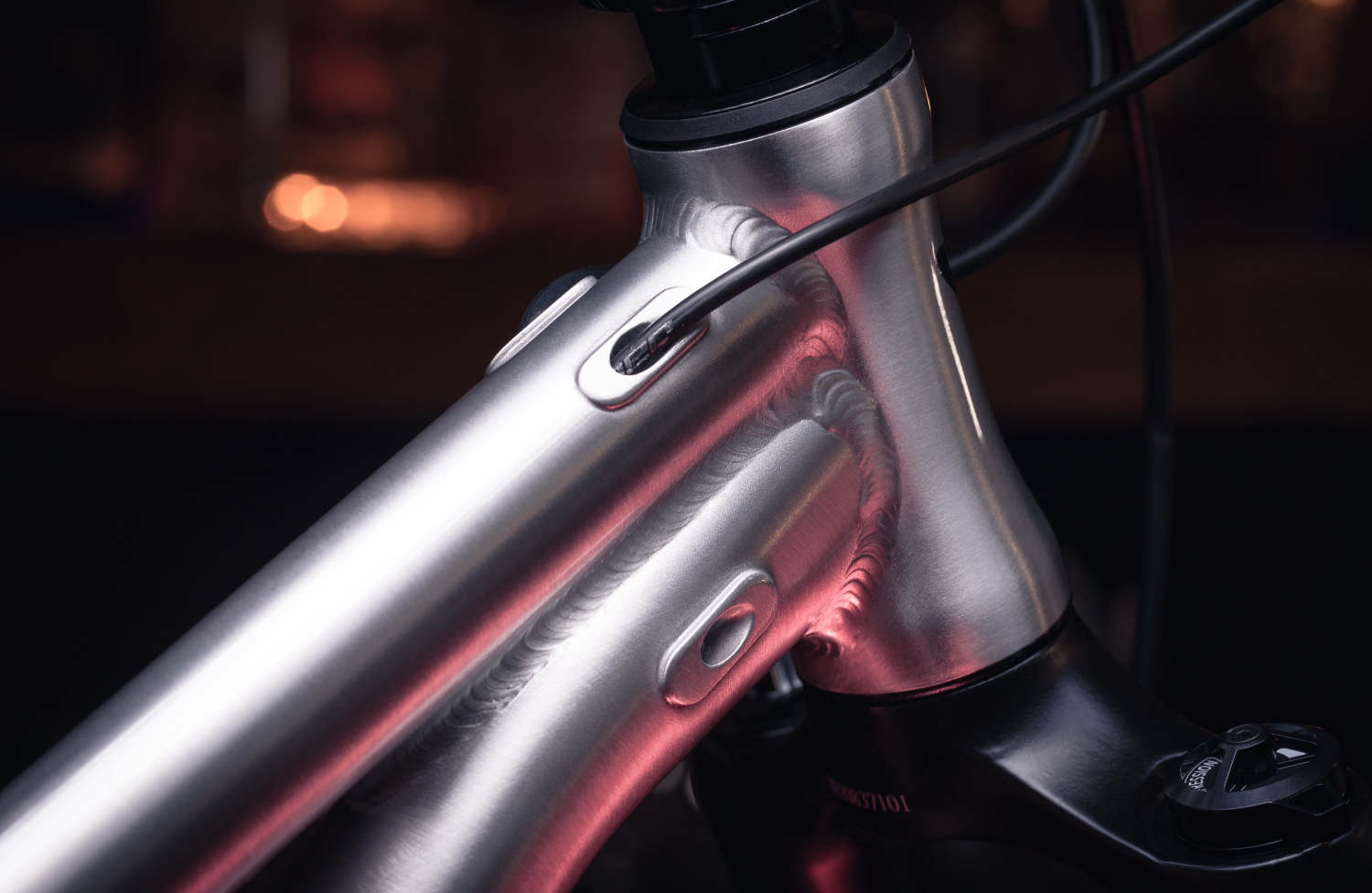

TRIPLE BUTTED AL6061, INTERNAL CABLING, DROPPER READY

FORK

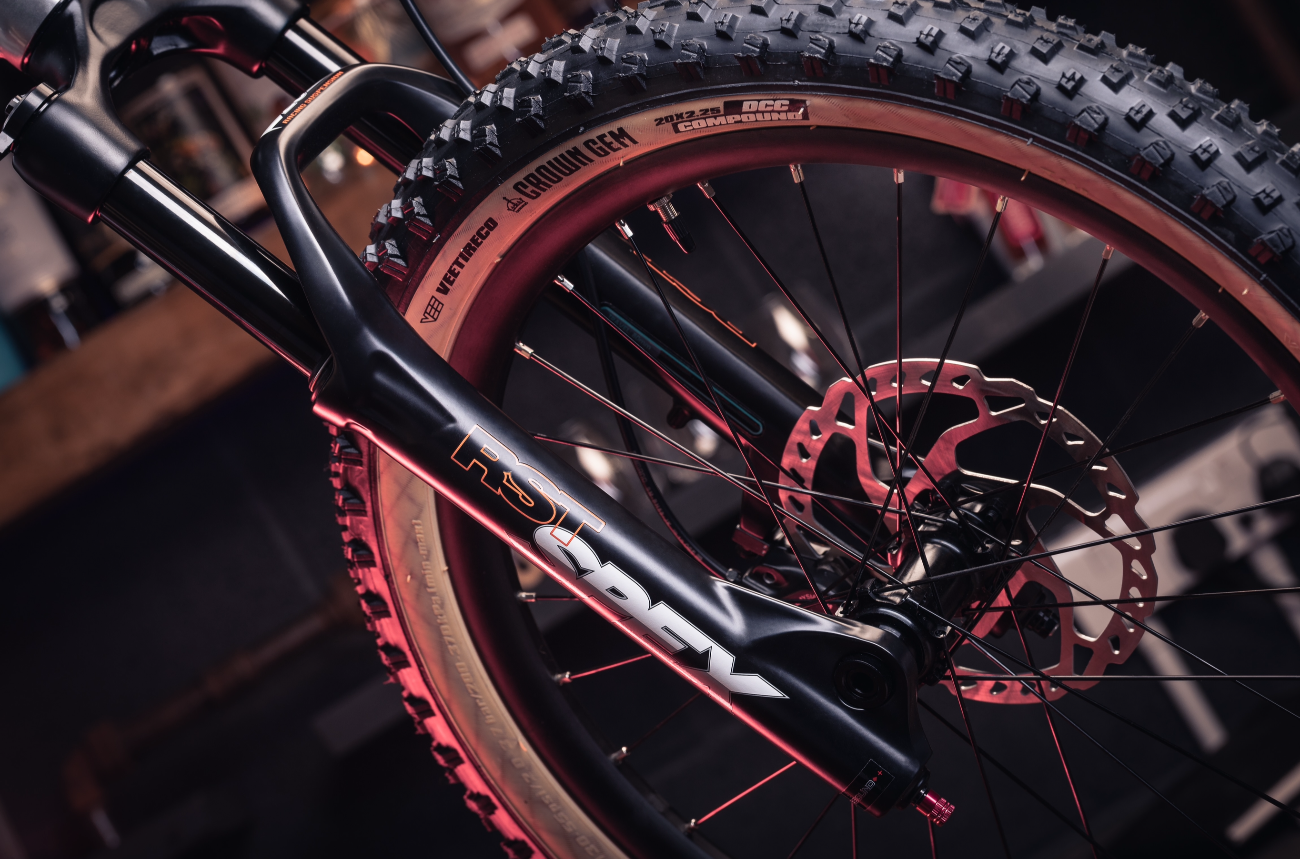

RST SPEX, 80MM TRAVEL, 15mm THRU AXLE

STEERER TUBE

AL6061

CRANKS

SAMOX 127MM DIRECT MOUNT, NQF

PEDALS

ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING

RIMS

20 X 24H FRONT, 28H REAR, DOUBLE WALLED AL6061

REAR HUB

CNC'D STRAIGHT PULL AL6061, 12x142 THRU AXLE

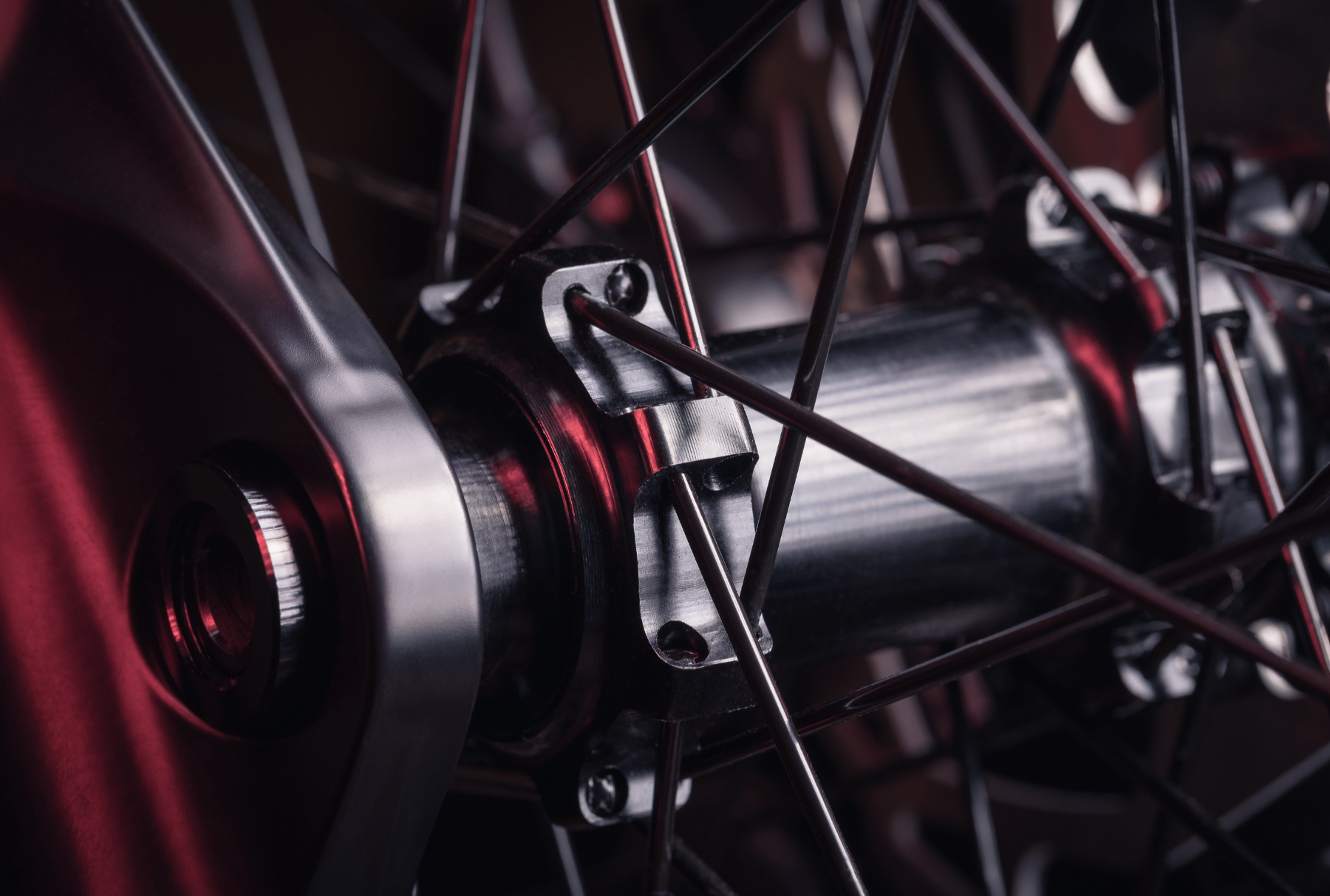

FRONT HUB

CNC'D STRAIGHT PULL AL6061, 15x100MM THRU AXLE

AXLES

THRU AXLES AL7075, 15MM FRONT, 15MM REAR

CHAIN

KMC X10

CHAINRING

OFFSET NARROW WIDE, CNC'D AL7075, 30T

REAR CASSETTE

SUNRACE 11-36T, 10SPD

WEIGHT

9.6KGS W/O PEDALS

SHIFTER

SHIMANO DEORE M6000 RAPIDFIRE RH 10SPD

DERAILLEUR

SHIMANO ZEE SS 10SPD

BRAKES

SHIMANO DEORE BR-MT500, 160MM ROTORS

LEVERS

SHIMANO DEORE BL-MT501

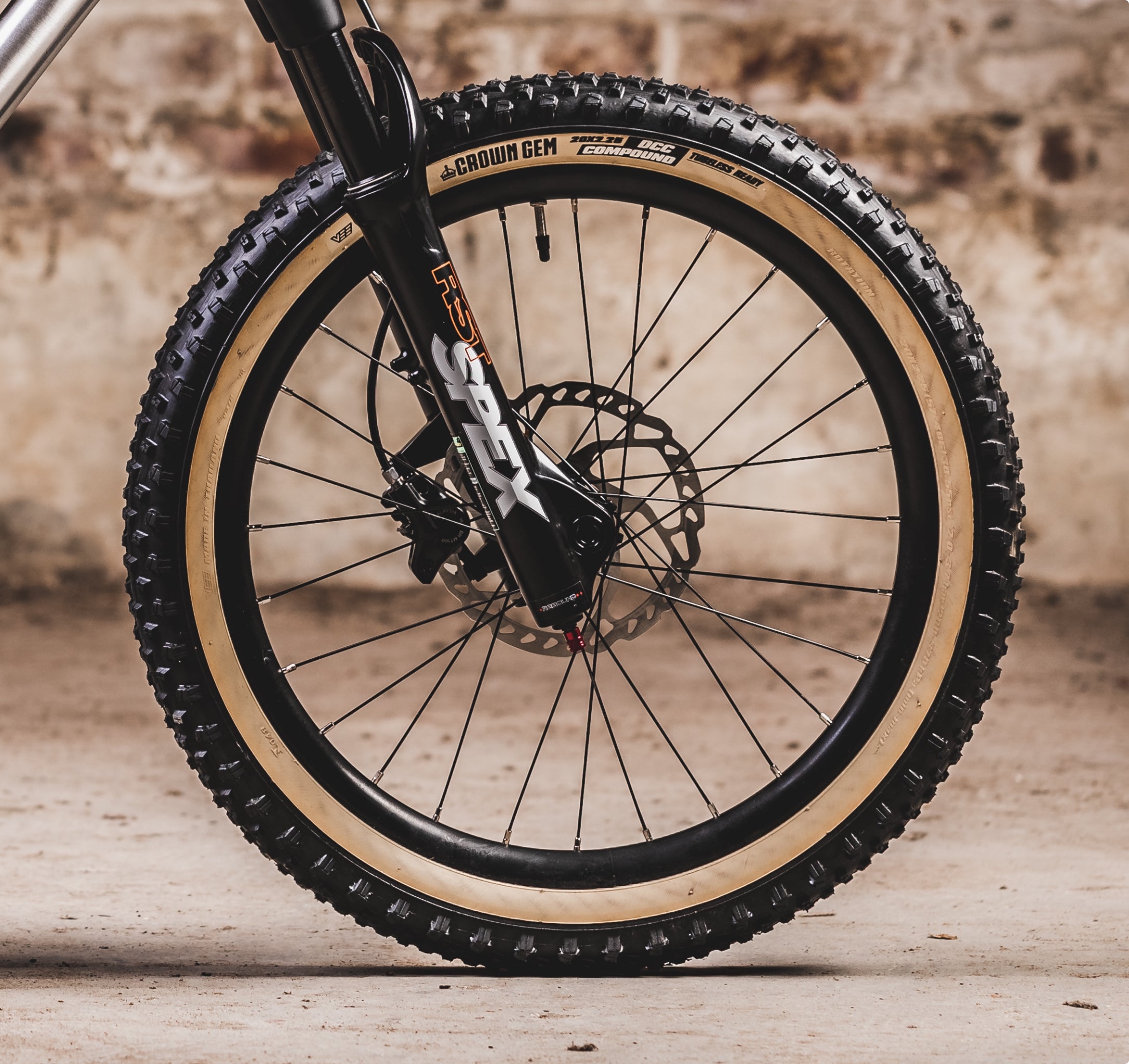

FRONT TYRE

VEE CROWN GEM SKINWALL 20x2.25", 72TPI FOLDING

REAR TYRE

VEE CROWN GEM SKINWALL 20x2.25", 72TPI FOLDING

HEADSET

SEMI INTEGRATED, 1 1/8” CARTRIDGE BEARING

STEM

RITCHEY OS FORGED AL6061, 35MM REACH

BARS

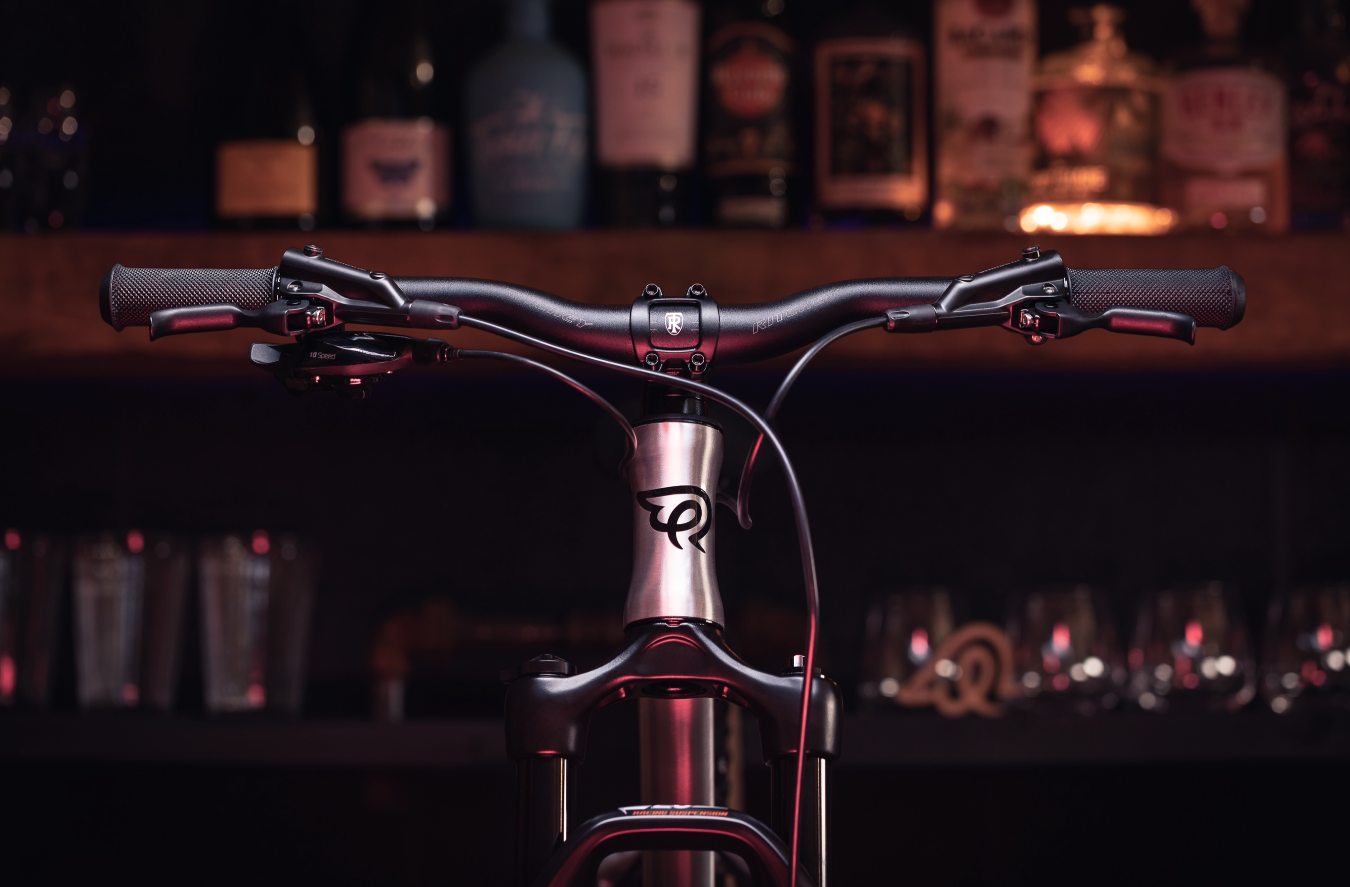

560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE

GRIPS

ER LOCK ON KRATON 92MM

SEAT POST

RITCHEY, 30.9MM x 225MM, AL2014

SADDLE

ER WINGED, RAILED

SEAT CLAMP

PROMAX  QR, 34.9MM
